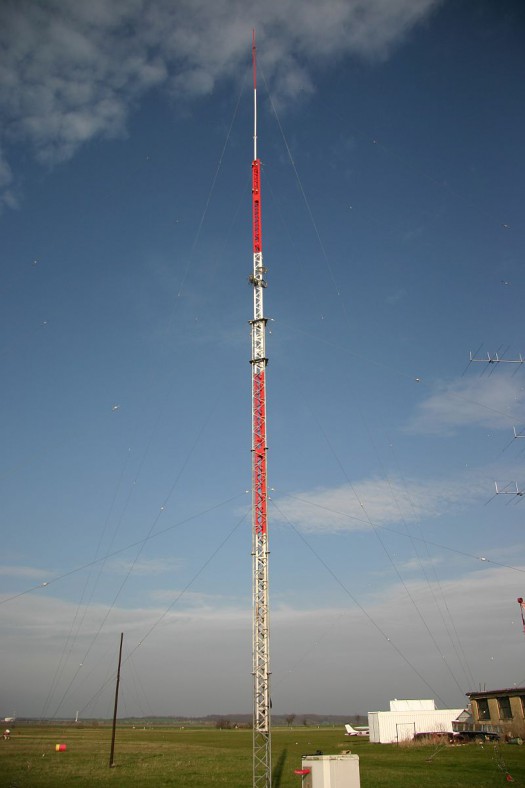

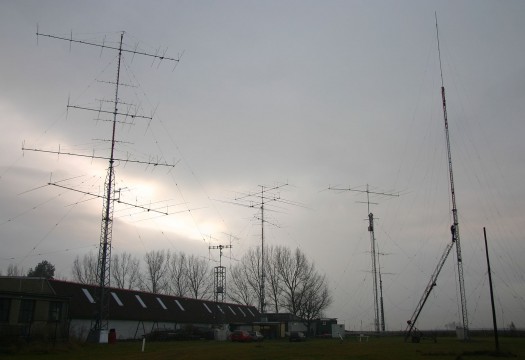

Current 160m antenna

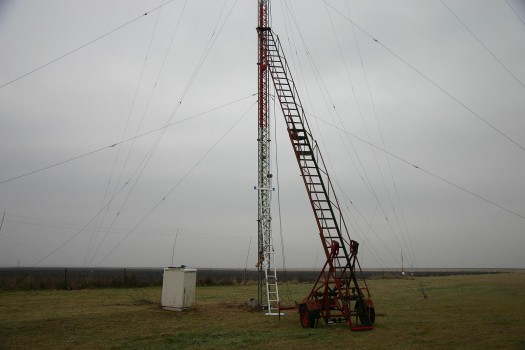

Vertical 39m height with ground radials




Timeline

12/2016

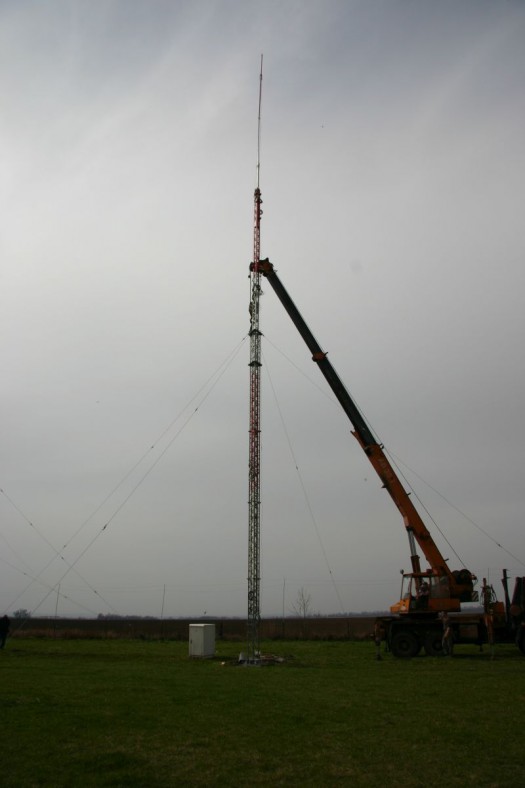

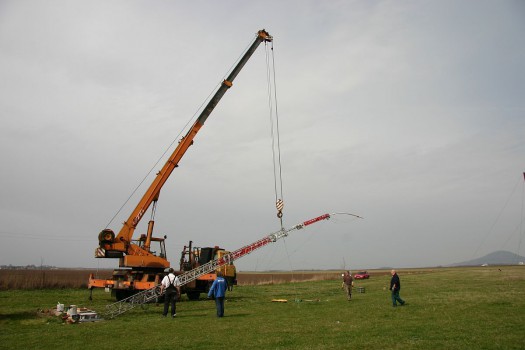

Vertical works continue... Middle section slowly lifted, now total height 39m. Our plan is to lift to 42m.







4/2016

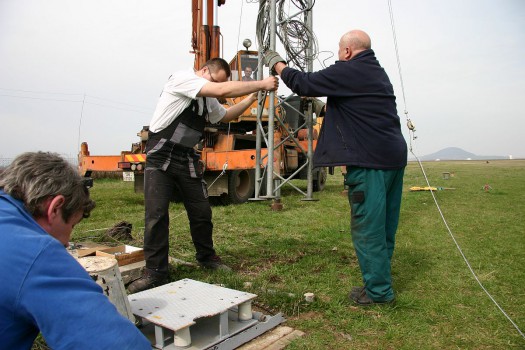

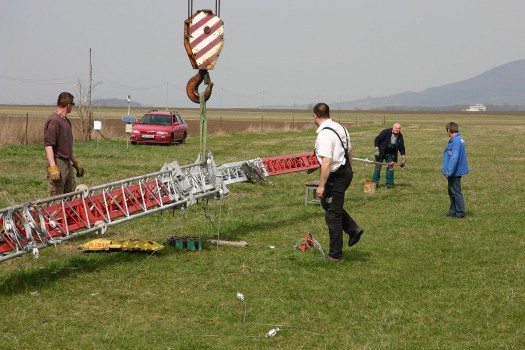

First part of new vertical








11/2010

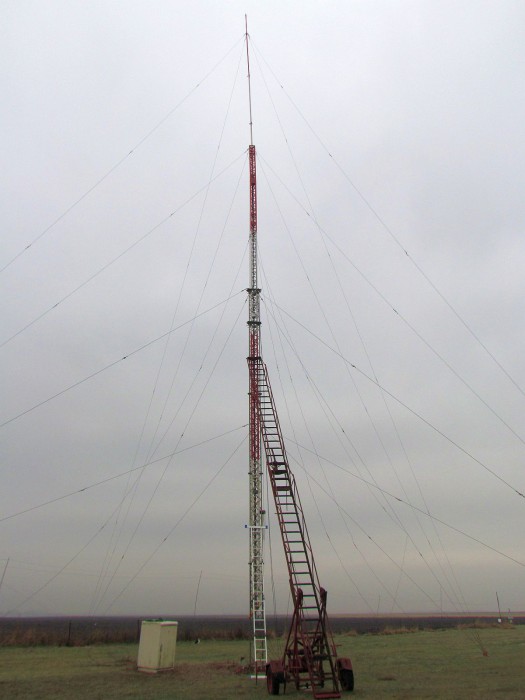

Vertical 34m hight

74 ground radials







9/2008

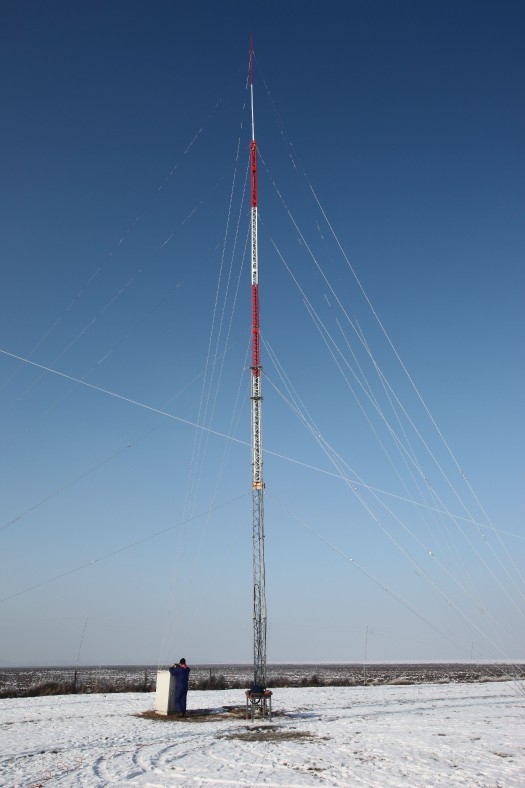

Building new vertical. Three ceramic insulators below 30m high telescopic aluminium mast. Aditional 4m aluminium tube on the top of the vertical. Total hight 34m.







3/2008

4 months old vertical crash due to EMMA hurricane...






12/2007

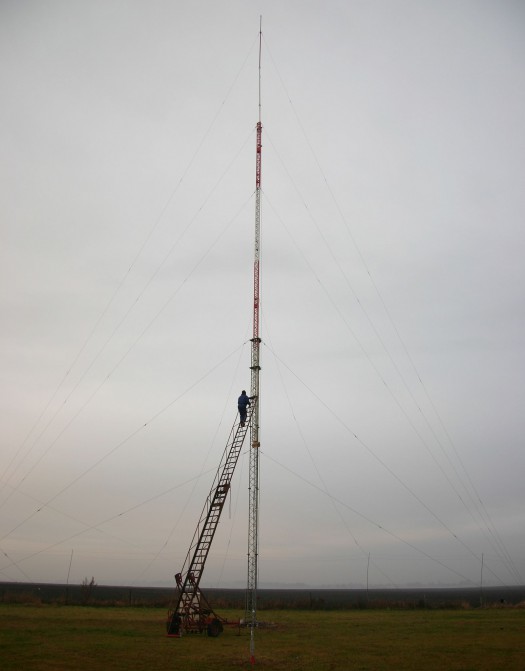

Building new vertical. Used steel tubes, total hight 29m








2/2005

Vertical crash in strong wind...








12/2004

Building and erecting our first vertical for Top band. Telescopic aluminium tubes, total hight 28,5m







Middle part of vertical is aluminium telescopic mast  Wimo PM10,7/1,9


 Preparing guying ropes
