10 m

Current 10m antennas

7 / 7 el. OWA @30 / 18m both rotatable together on tower Nr.3

6 el. OWA @21m fix to west on tower Nr.1

5 el. OWA @11m fix to south on tower Nr.1

5 el. OWA @15m rotatable on tower Nr.4



Timeline

6/2015

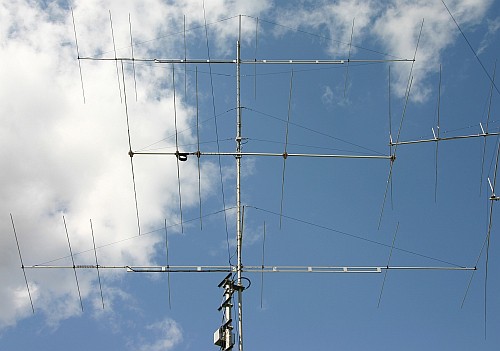

Finally! New 10m stack 7 / 7 el. OWA (and 17m 5 el. yagi YU7EF design @23m) - all antennas rotatable





5/2015

Finnished new stack 7 / 7 el. OWA (old stack damaged by hurricane). Both antennas fully rotatable together @29 / 17m.




9/2013

Stack 7 / 7 / 7 el. OWA yagis fully rotatable @ 29 / 23 / 17m finnished!









4/2013

Building new antenna system for 10m - 7 / 7 / 7 el. OWA





1/2012

5 el. OWA yagi home made fully rotatable @ 15m (in the middle of 6m stack)





5 el. OWA yagi home made FIX to south @ 7m
